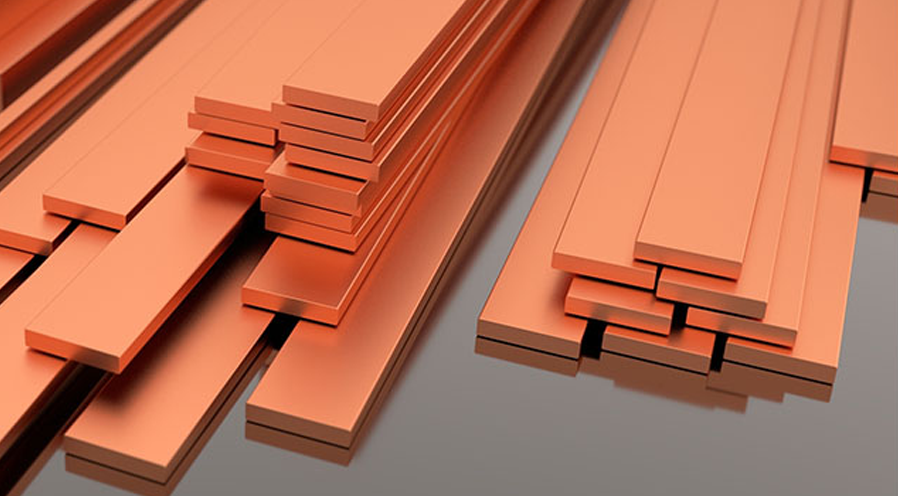

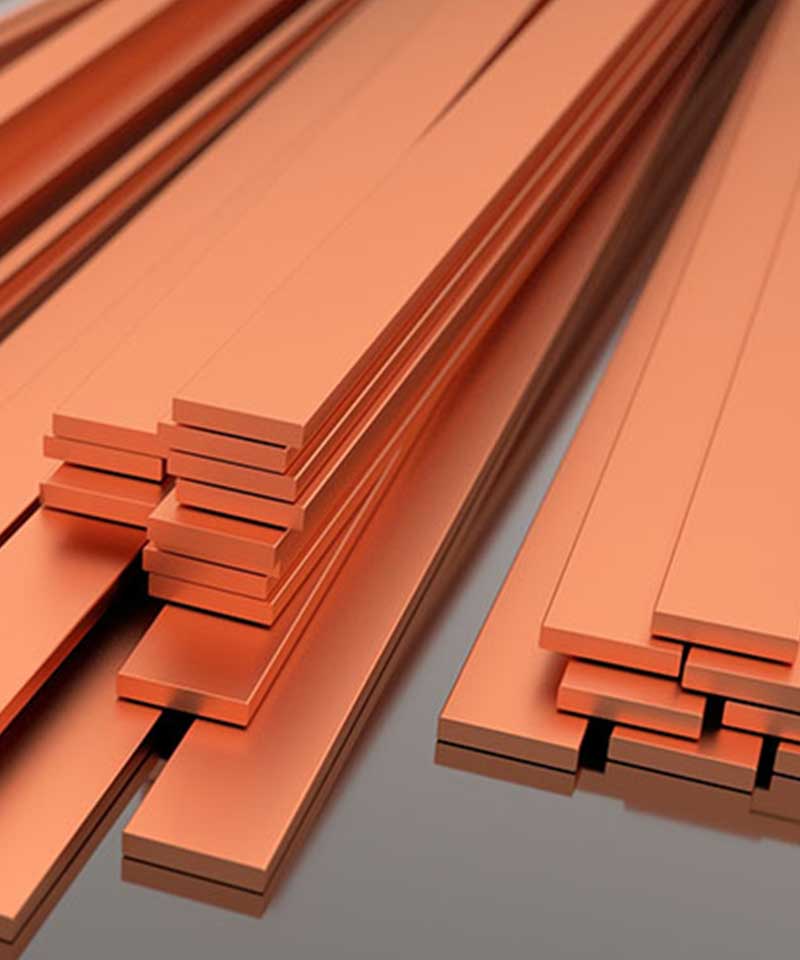

Leebogroup engineers all kinds of industrial applications of copper with the help of our sophisticated machinery and skilled manpower. We take pride in being able to guarantee maximum efficiency, durability and quality in our products as per the international standards. We are one of the leading Copper Flats & Strips Manufacturer in Copper Industry. We also manufacturer ETP & Oxygen Free Grade Copper Busbar, Extruded Copper Bar & Tin-plated copper Busbar.
| Copper Busbars & Strips - OFC & ETP GRADE | Domestic Sales Standard | International Sales Standard | ||
|---|---|---|---|---|
| Dimension Details | Width | Thickness | ||
| 10 mm - 50 mm | 1 mm - 25 mm | IS:191, 613 & 1897 | EN-13601 / B152/B152M / B187/B187M | |
| 10 mm - 100 mm | 2 mm - 25 mm | IS:191, 613 & 1897 | EN-13601 / B152/B152M / B187/B187M | |
| 10 mm - 150 mm | 3 mm - 25 mm | IS:191, 613 & 1897 | EN-13601 / B152/B152M / B187/B187M | |
| 10 mm – 200 mm | 3 mm - 20 mm | IS:191, 613 & 1897 | EN-13601 / B152/B152M / B187/B187M | |
| 10 mm – 300 mm | 3 mm - 20 mm | IS:191, 613 & 1897 | EN-13601 / B152/B152M / B187/B187M | |
| Copper Bus Bar Extrusion | 301 mm – 420 mm | 12 mm - 17 mm | IS:191, 613 & 1897 | EN-13601 / B152/B152M / B187/B187M |
| Electrical Conductivity: - (% IACS) | As Per Standards | |||
| Specifications (OFC) | Cu : 99.95% min, | |||
| O2 - 10ppm max | ||||
| Specifications (ETP) | Cu : 99.90% min, | |||
| O2 - 400ppm max | ||||
| Supply Condition | Straight length & coils | |||
| Electro Plating | Tin / Silver / Nickel, Plating As Per Requirement | |||
| Packaging | Cut to 1 to 5 meters length, Packed in Pallet / Wooden box | |||
