PRODUCT GALLERY

Leebogroup engineers all kinds of industrial applications of copper with the help of our sophisticated machinery and skilled manpower. We take pride in being able to guarantee maximum efficiency, durability and quality in our products as per the international standards.

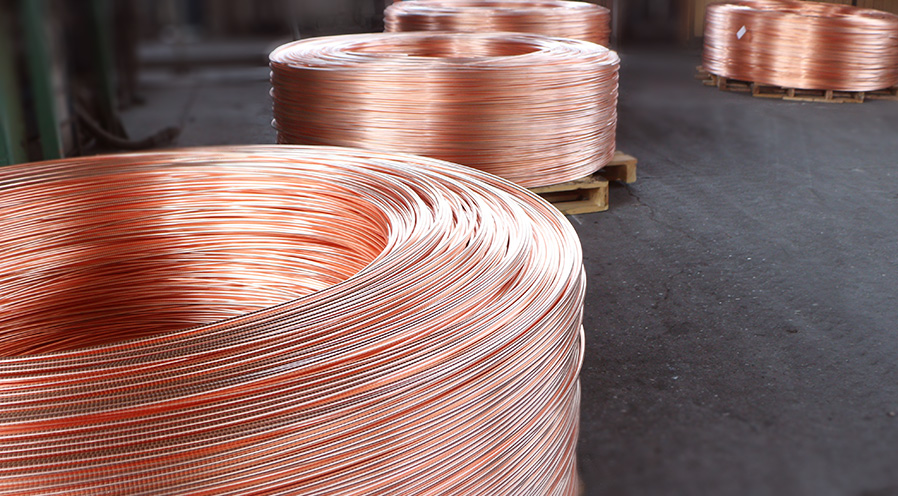

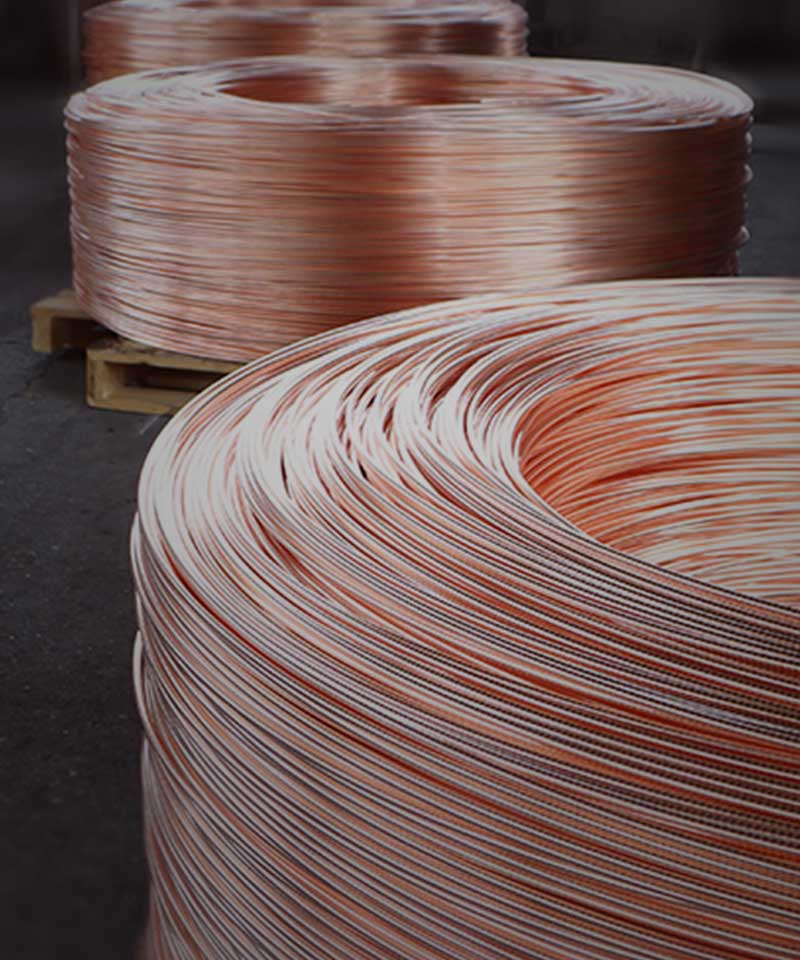

1) Cu UPCAST RODS

COPPER UPCAST RODS
ITEM OFC Grade ETP Grade
Specifications Cu: 99.95%, O2<10ppm Cu: 99.90%, O2<400ppm
DimensionDetails 12.5mm, 16mm, 20mm, 25mm
Coil Weight 1.5 to 3 MT

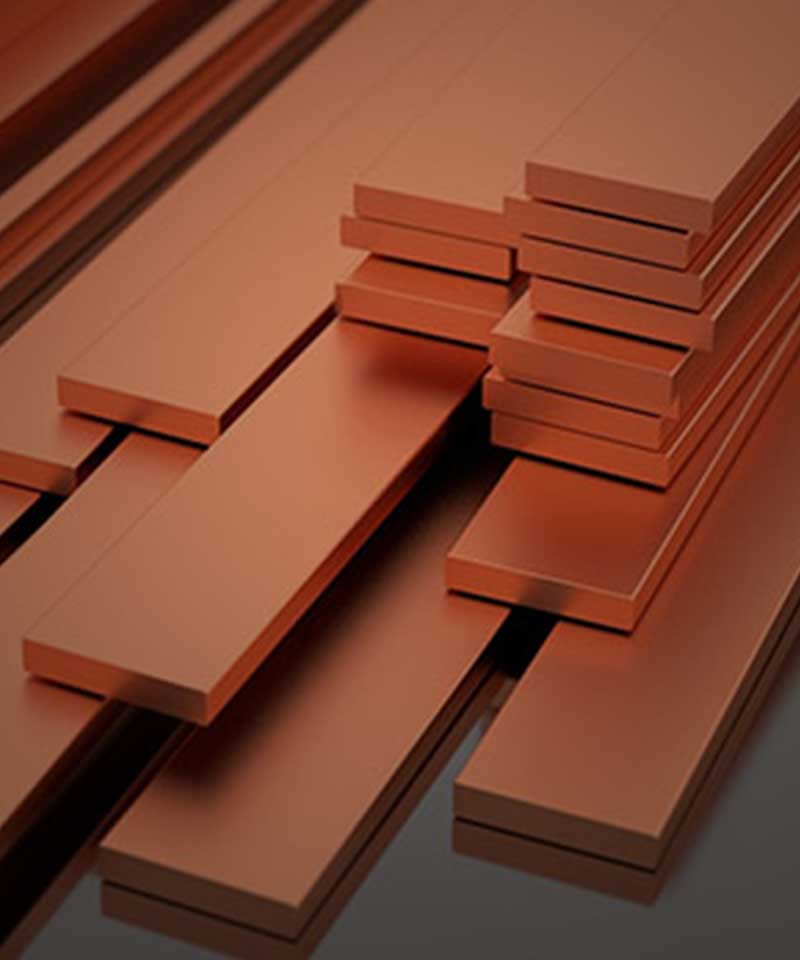

2) Cu FLATS & STRIPS

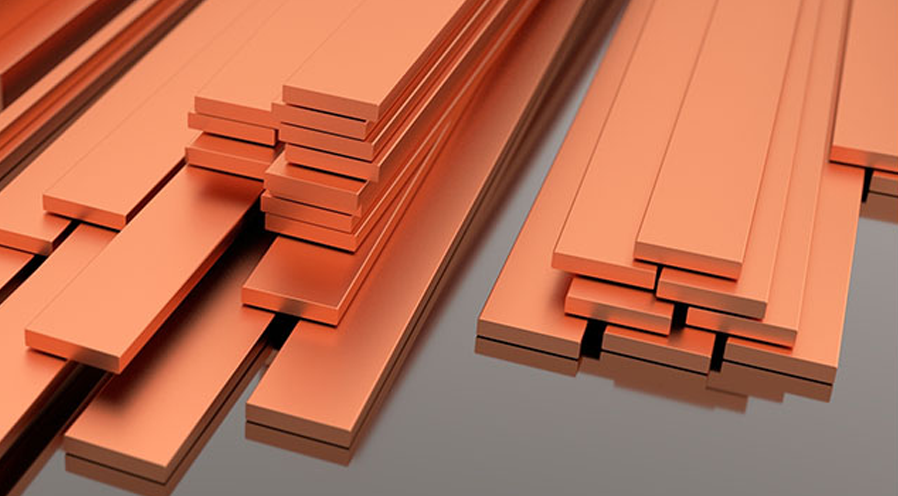

COPPER BUSBARS & STRIPS - OFC & ETP GRADE
Dimension Details
Width Thickness
10 mm - 50 mm 1 mm - 25 mm
10 mm - 100 mm 2 mm - 25 mm
10 mm - 150 mm 3 mm - 25 mm
10 mm - 200 mm 5 mm - 12 mm
Standards: - IS:191, 613 & 1897, BS EN 13601:2013
Electrical Conductivity: - (% IACS) Above 100% in Soft, Above 98.5% min in Half Hard / Hard
Specifications (OFC): - Cu : 99.95%, 02<10ppm
Specifications (ETP): - Cu : 99.90%, 02<400ppm
Supply Condition: - Straight length & coils
Electro Plating Tin / Silver / Nickel, Plating Range 6 micron to 20 micron
Packaging Cut to 1 to 4.5 meters length, Packed in Pallet / Wooden box

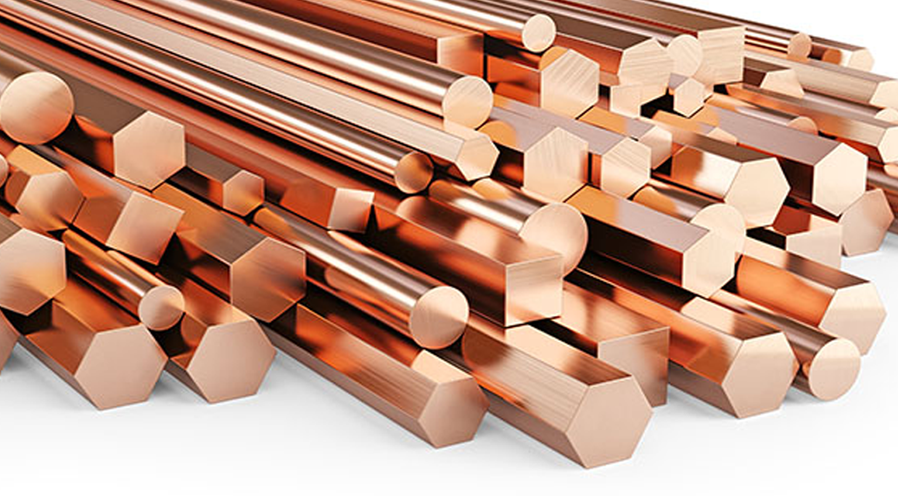

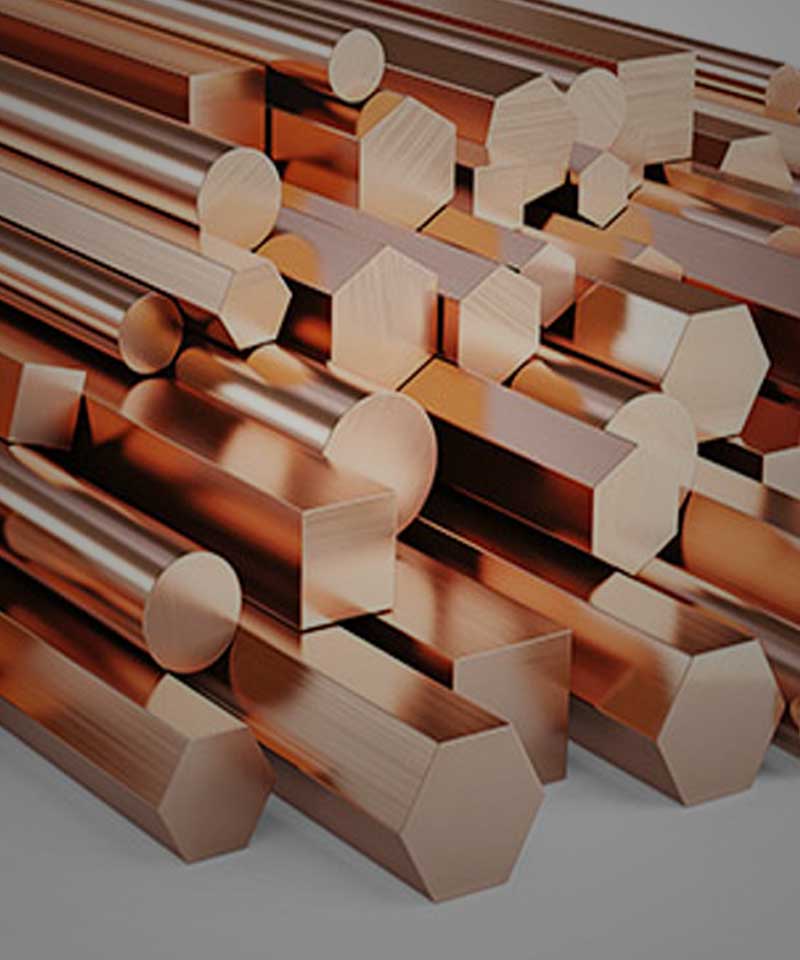

COPPER ROUND / COPPER HEX / COPPER SQUARE – ETP GRADE
COPPER ROUND ø 7 mm to 120 mm
COPPER HEX ø 8 mm to 50 mm
COPPER SQUARE 10*10 mm to 60*60 mm
Standards: - IS: 191, 613 & 1897, BS EN 13601:2013
Electrical Conductivity: - (% IACS) 98.5% min
Specifications: - Cu : 99.90%, 02<400ppm

3) Cu FOILS & SHEETS

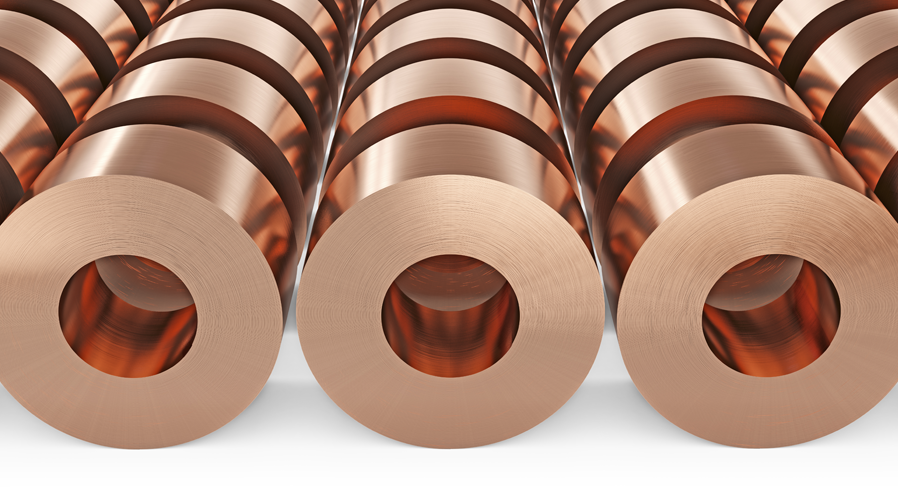

COPPER FOILS - OFC & ETP GRADE
ITEM Width Thickness
Dimension Details 10 mm - 200 mm 0.1 mm - 3.00 mm
Standards IS 1897 / IS 14811
COPPER SHEETS & PLATES- ETP GRADE
ITEM Width Thickness
Dimension Details 600 mm * 600 mm 3 mm - 6 mm
14" * 48" 0.3 mm - 3 mm
Standards :- IS 1897 / IS 3052

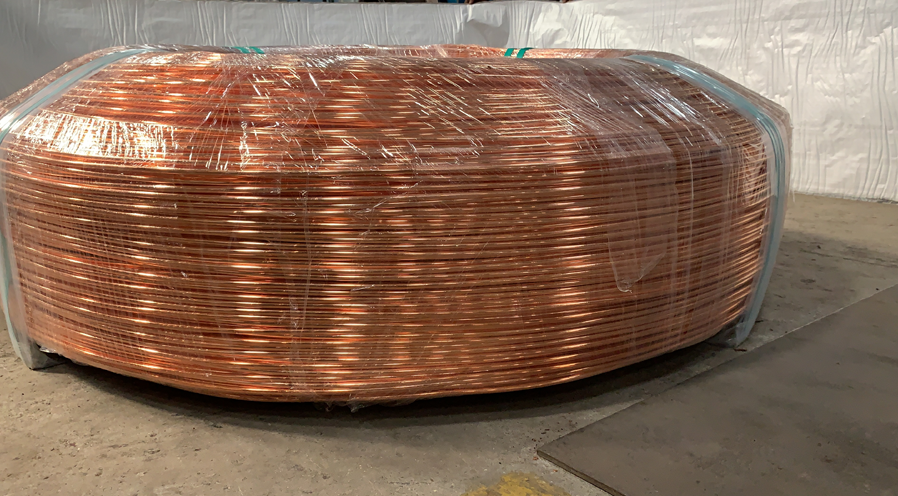

4) Cu WIRE ROD & WIRES

COPPER WIRE ROD - OFC & ETP GRADE
ITEM OFC Grade ETP Grade
Specifications Cu : 99.95%, 02<10ppm Cu : 99.90%, 02<400ppm
Dimension Details ø 8 mm
Supply Condition In Bobbins / Coils
Coil Weight 1.5 to 3 MT

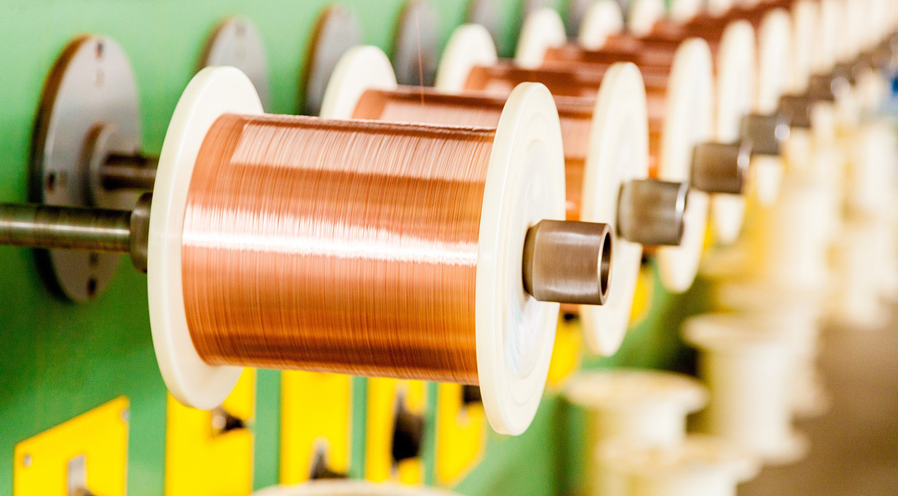

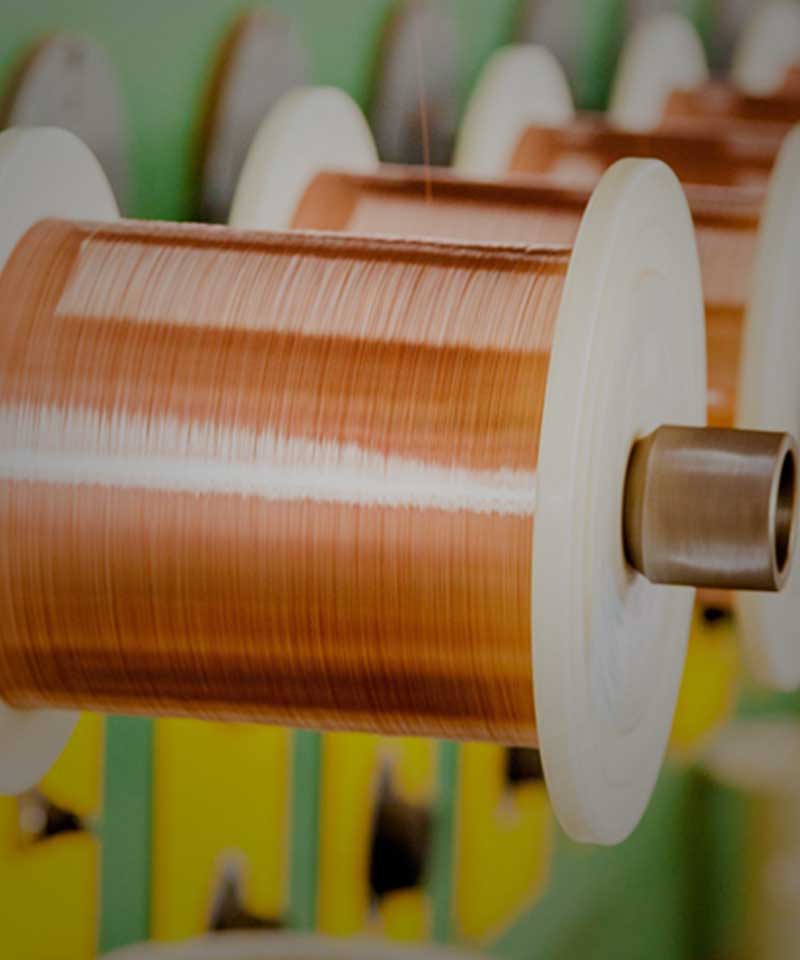

COPPER WIRE – EC GRADE
Dimension Details ø 0.193 mm - ø 6.0 mm
Supply Condition In Reels / Bundles
Coil Weight 5kgs - 100kgs

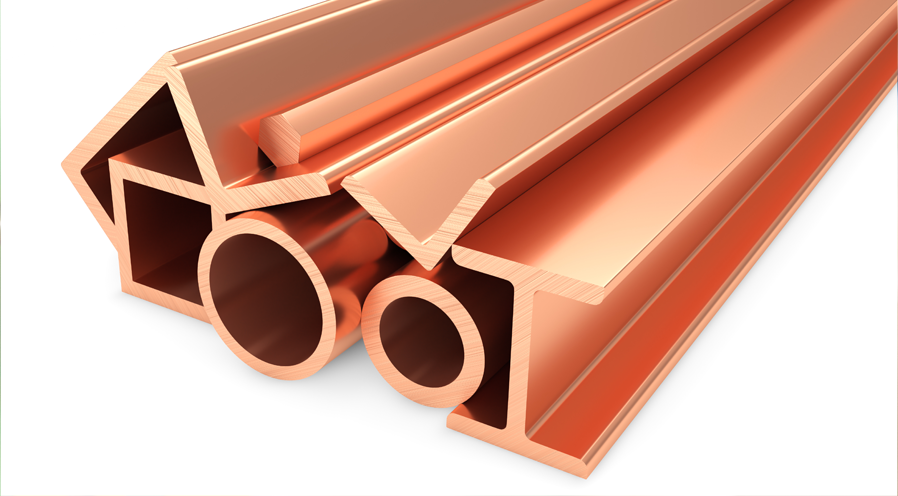

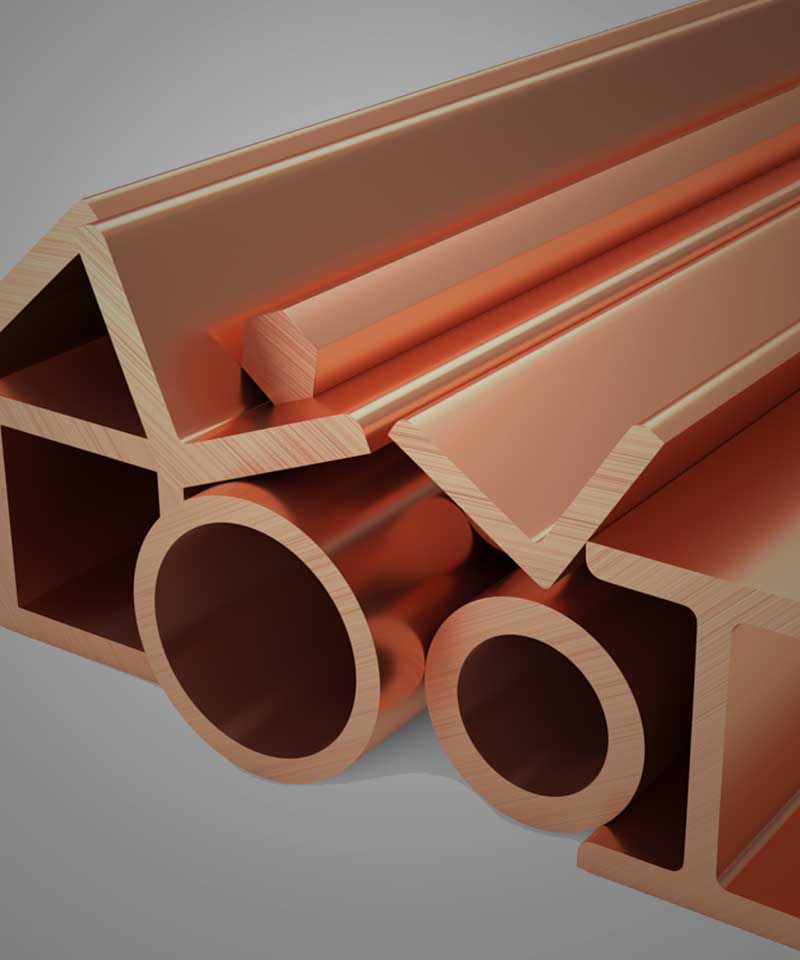

5) Cu SECTIONS & PROFILES

Cu - SECTION & PROFILE
Standards IS : 191, 613 & 1897, BSEN 13601 : 2013
Configuration Customised as per requirements

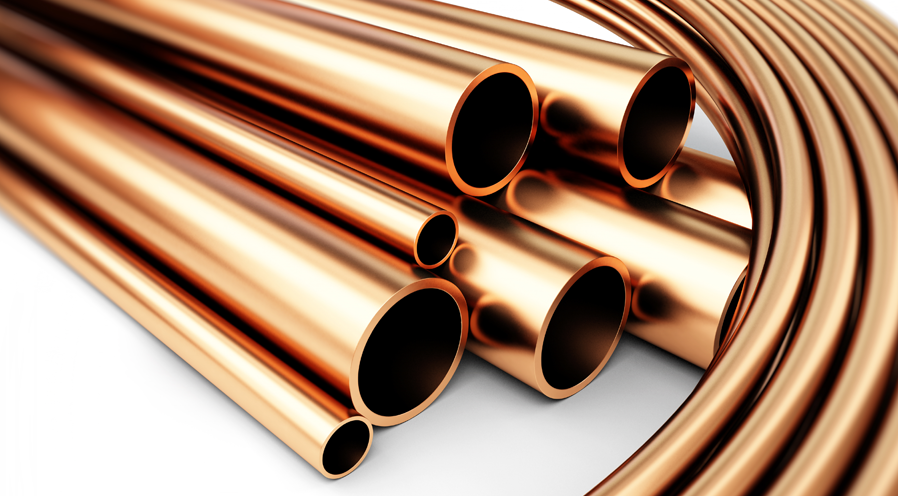

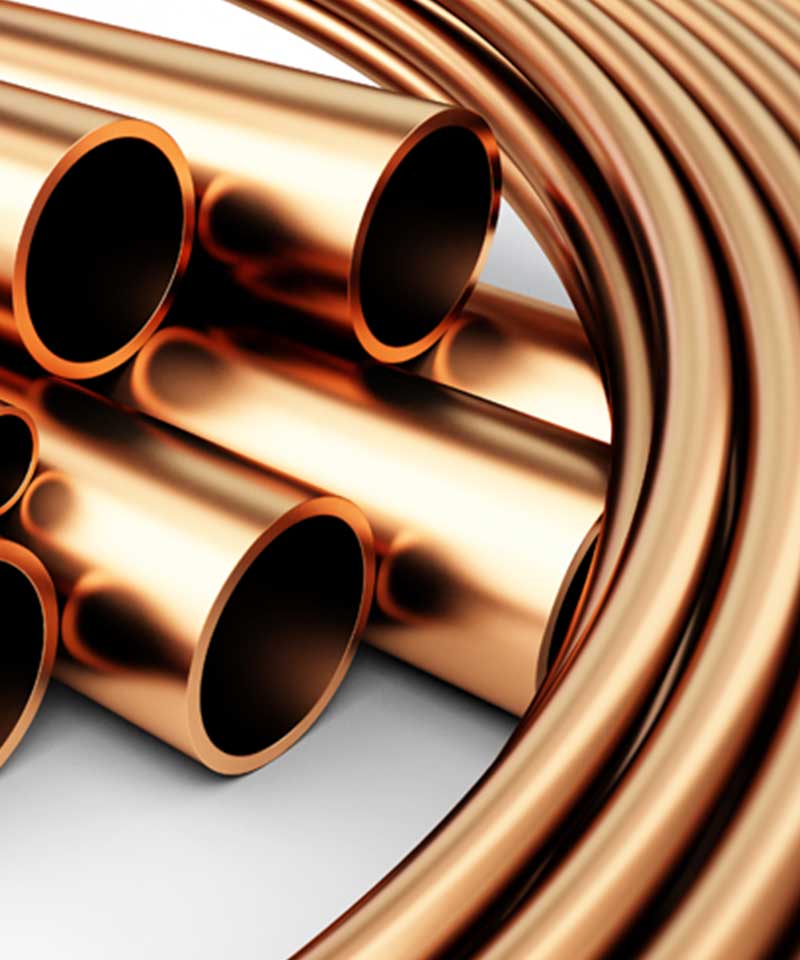

6) Cu TUBES & PIPES

COPPER TUBES & PIPES
Dimension Details OD 10 mm – 100 mm ID 1 mm – 10 mm
Specifications Electrolytic Grade
Standards IS 2501

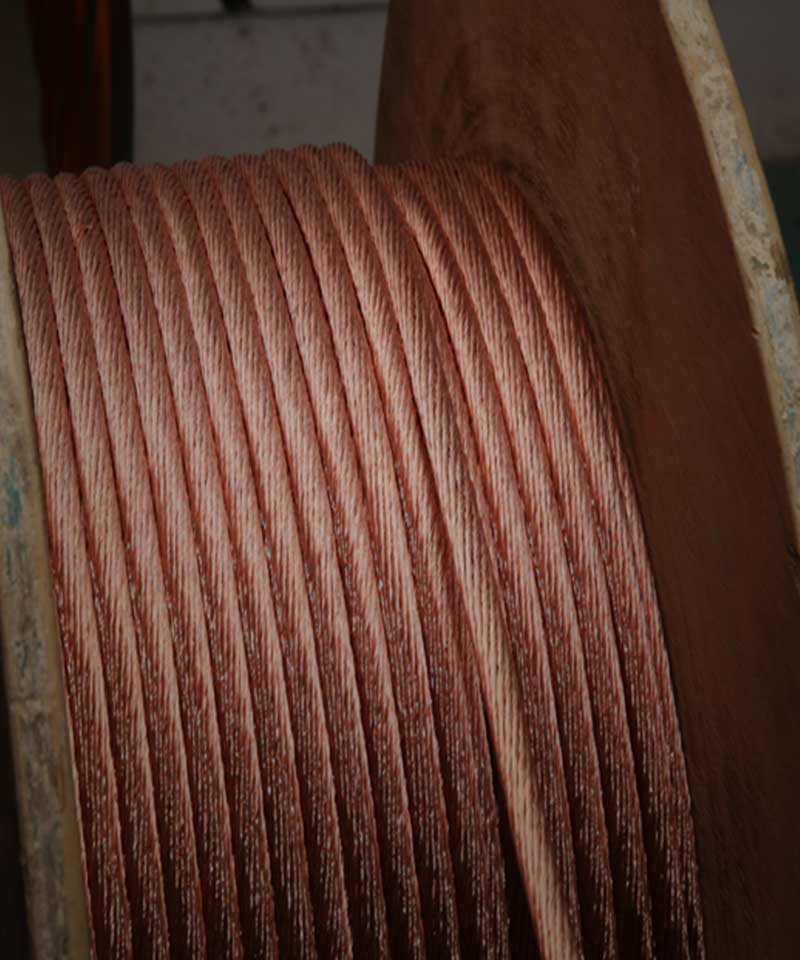

7) Cu CONDUCTORS & PICC

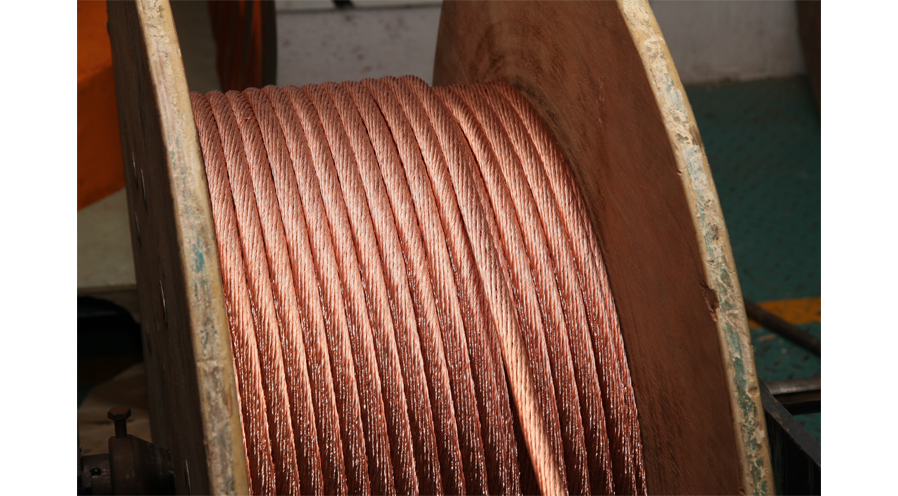

COPPER CONDUCTORS
Dimension Details ø 20 Sq. mm to ø 300 Sq. mm
Configuration Customised as per requirements

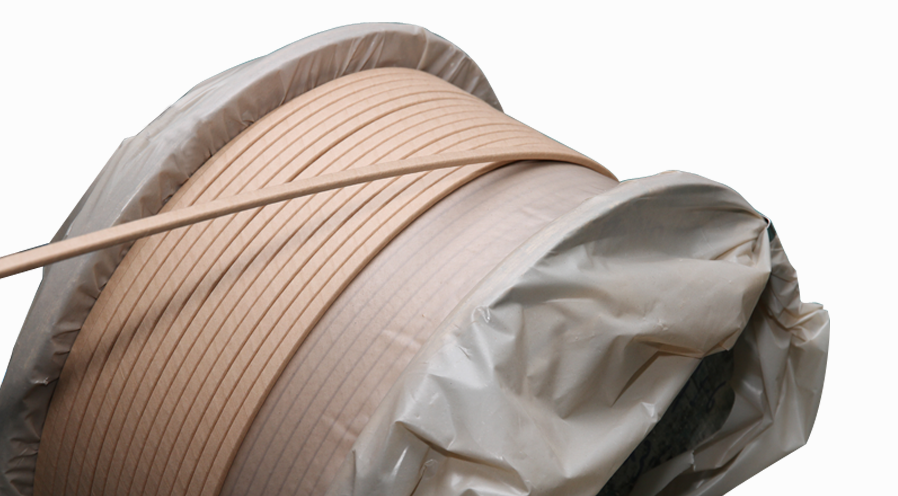

PAPER INSULATED COPPER CONDUCTORS
Dimension Details Width Thickness
Size Range 25 mm 1 mm - 6 mm
Supply Condition Woodern Reels
Coil Weight 20 kgs - 100 kgs
Paper Type Craft Paper, Nomex etc
